Written by
Chris Passmore, CHP
President, Radiation Detection Company
Last Updated: September 20, 2026
Whether you work in healthcare, nuclear power, research, manufacturing, industrial radiography, a veterinary clinic, or a dental practice, a radiation dosimeter badge is one of the most important tools for protecting workers from occupational radiation exposure. This guide explains who needs a dosimeter badge, how to wear it correctly, how to maintain accurate dose records, and the best practices every Radiation Safety Officer (RSO) should follow to build a strong radiation safety program.
Organizations that work with ionizing radiation rely on radiation dosimeter badges to monitor occupational exposure, comply with the US Nuclear Regulatory Commission (NRC) and state regulations, and help ensure workers remain within applicable dose limits. When worn correctly and processed by an accredited laboratory, dosimeters provide the legal dose records needed to support a safe, compliant radiation safety program.

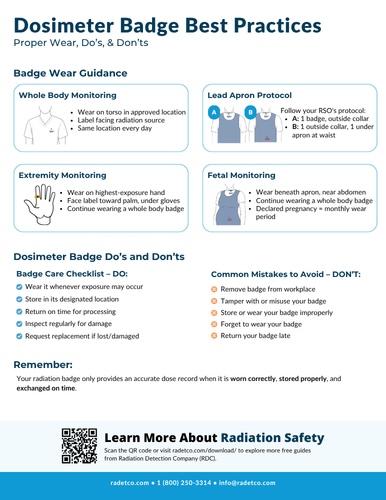

Prefer a quick reference? Click below to download our free Radiation Badge Wearing Infographic for an easy-to-print guide to proper badge wear, placement, storage, and radiation safety best practices.
A radiation dosimeter badge – sometimes called an X-ray badge, radiation badge, or personnel dosimeter – is a device worn by workers who may be exposed to ionizing radiation. A dosimeter badge measures cumulative occupational radiation exposure over a designated monitoring period (wear period) and provides the data needed to verify regulatory compliance and evaluate workplace safety.
Radiation dosimeters are commonly used in:
For a broader overview of personnel monitoring, read our Ultimate Radiation Badge Guide.
After each wear period, the dosimeter is processed by a NVLAP-accredited laboratory to determine how much radiation the worker received and provide a legal dose of record. The results are reviewed by the organization's RSO, who uses the information to monitor trends, investigate unusual exposures, and ensure employees remain within applicable dose limits.
While many people think of a radiation badge as simply a compliance requirement, it serves a much broader purpose. A well-managed dosimetry program provides continuous feedback about workplace radiation practices, helping organizations identify opportunities to reduce exposure before regulatory limits are approached.
Need help choosing the right dosimetry solution for your organization?
Contact RDC to speak with a dosimetry expert →
A radiation dosimeter badge measures the amount of ionizing radiation a worker is exposed to over time. Passive dosimeters, such as optically stimulated luminescence (OSL) and thermoluminescent dosimeters (TLDs), contain specialized detector materials that absorb and store energy when exposed to radiation. At the end of the wear period, the badge is returned to an NVLAP-accredited laboratory, where the stored energy is measured to determine the wearer's occupational dose and generate a legal dose of record.
Unlike passive dosimeters, digital dosimeters use electronic sensors to measure radiation continuously, providing near real-time dose information, automated alerts, and immediate access to exposure data without waiting for laboratory processing.
Before OSL and TLD technologies became the industry standard, film badges were widely used to monitor occupational radiation exposure. While film badges played an important role in the early history of personnel monitoring, they have largely been replaced by OSL and TLD dosimeters because modern technologies provide greater accuracy, sensitivity, stability, and reliability.
The National Voluntary Laboratory Accreditation Program (NVLAP) is a government agency run by the National Institute of Standards and Technology (NIST). NVLAP evaluates and accredits testing and calibration laboratories.
Not every dosimeter can serve as a legal dose of record; a radiation dosimeter can only be used as an official dose of record when it is processed by an NVLAP-accredited laboratory. Through independent performance testing, NVLAP verifies that dosimetry processors meet the requirements of ANSI N13.11, giving employers and regulators confidence that reported dose measurements are accurate and reliable. Radiation Detection Company is NVLAP-accredited under Lab Code 100512-0 and Lab Code 600295-0.
The US Nuclear Regulatory Commission (NRC) also incorporates NVLAP accreditation into its regulations. Under 10 CFR 20.1501(c), licensees must use personnel dosimetry that is processed and evaluated by a laboratory that:
Learn more about how different dosimeter technologies perform under NVLAP testing in our TLD vs. OSL Performance Guide.
Anyone working with radioactive materials, or devices that emit X-ray radiation, should wear a dosimeter badge. Radiation badges are legally required for workers whose occupational exposure is likely to exceed 10% of the NRC’s annual regulatory limit. The whole body exposure limit is 5,000 millirems (mrem) per year; monitoring is mandated for any employees likely to receive 500 mrem or more in a single year. Employees under 18 years of age are limited to 10% of the adult occupational dose limits.
Common roles requiring radiation badges include:
Many organizations also choose to monitor employees expected to receive doses below the NRC annual limit. Even when monitoring is not strictly required, wearing a radiation badge can provide valuable reassurance to employees while helping organizations identify changing exposure trends over time.
Dosimeter badges can measure three types of exposure:
For adult radiation workers, the NRC establishes an annual occupational Total Effective Dose Equivalent (TEDE) limit of 5,000 mrem (50 mSv).
Additional limits apply to specific tissues and organs.
| Dose Type | Annual Limit |
|---|---|
| Whole body (TEDE) | 5,000 mrem |
| Lens of the eye | 15,000 mrem |
| Skin or extremities | 50,000 mrem |
| Declared embryo/fetus | 500 mrem during pregnancy |
Agreement States may establish additional requirements beyond NRC regulations, so organizations should always follow whichever standard is more restrictive.
Every radiation safety program is built around one guiding principle: ALARA, which stands for “As Low As Reasonably Achievable.” Radiation dosimeter badges provide the objective data needed to evaluate whether protective measures are working.
Without accurate dose monitoring, organizations cannot:
Dose reports are one of the most valuable tools for employees, RSOs, and organizations looking to improve radiation safety.
Radiation dosimeters should be worn whenever occupational exposure may occur, including fluoroscopy, CT, nuclear medicine, industrial radiography, and research involving radioactive materials.
This includes procedures involving:
Get concrete information on how to determine who should wear a radiation badge, along with an easy-to-reference overview of regulations across all 50 states, with our 50-State Guide to Radiation Safety.

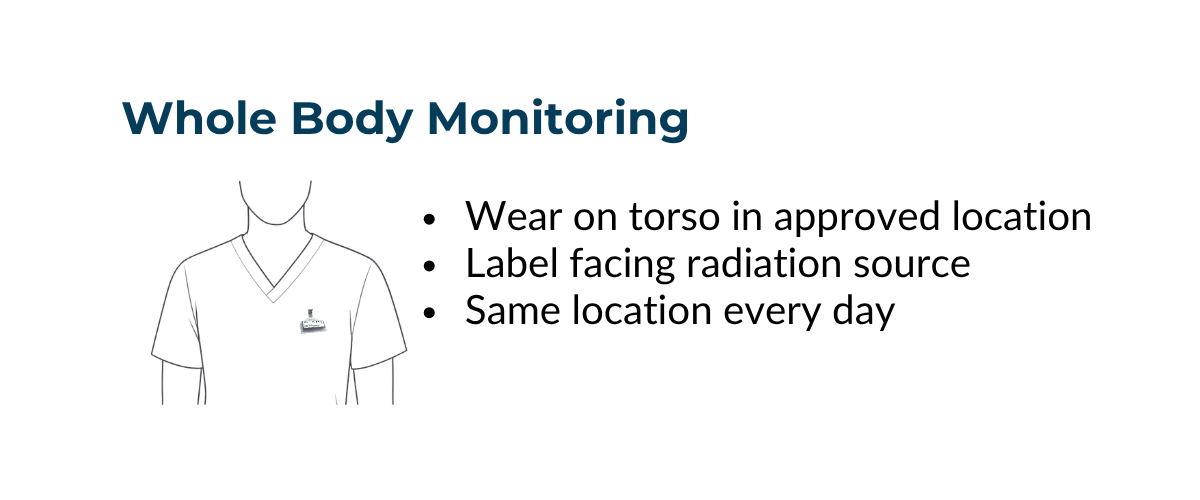

Proper badge placement is one of the most important factors affecting dose accuracy; a badge worn in the wrong location may significantly overestimate or underestimate the employee's actual occupational exposure.
For purposes of external exposure, “whole body” means head, trunk (including male gonads), arms above the elbow, or legs above the knee. As a general rule, a whole body dosimeter should be worn on the part of the body expected to receive the highest occupational dose, following your organization's radiation safety procedures.
For most workers, badges worn on the torso accurately report the amount of whole body exposure received. Place the whole body dosimeter badge in the same location with the label out, facing the radiation source.
Radiation Detection Company (RDC) offers four whole body monitoring solutions:
Not sure which whole body dosimeter is right for your organization? Download our free Ultimate Radiation Badge Guide.
When multiple work locations are involved, employees should continue wearing their assigned badge consistently in the same location unless instructed otherwise by their RSO.
For employees requiring separate dosimeter badges at more than one facility or location in a calendar year, each licensee must generate a unique NRC Form 5. The worker must then submit these individual dose records to their primary employer or current RSO to accurately track their cumulative annual dose.

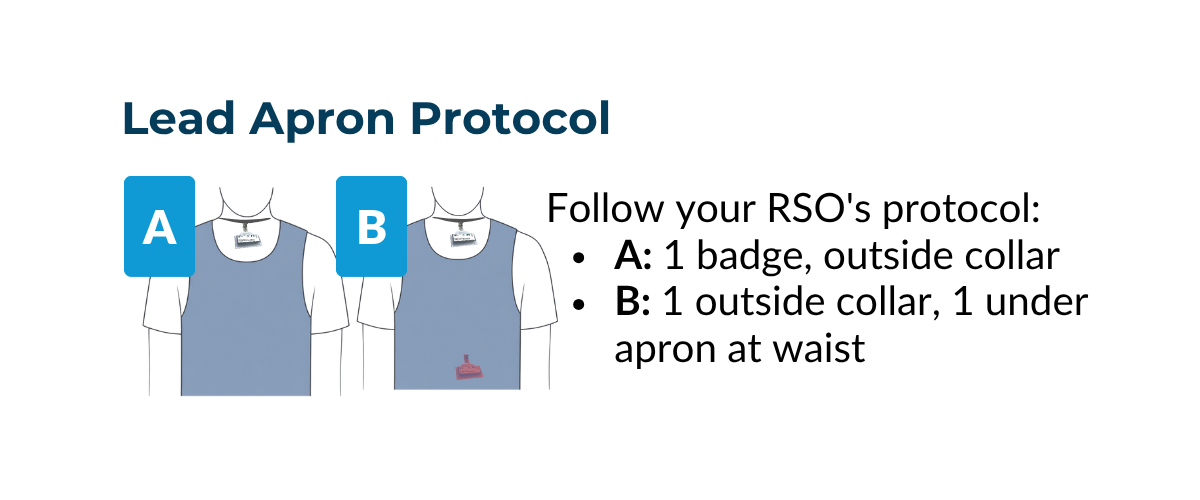

Lead aprons, often used in interventional radiology, cardiology, and fluoroscopy suites, protect staff from scatter or direct beam fluoroscopic X-ray radiation fields.
Depending on your monitoring protocol, your organization may use either:
Because lead aprons shield only part of the body, organizations often use one- or two-badge monitoring protocols to estimate whole body dose while accurately assessing shallow and lens dose. Badge placement should always follow your organization's approved monitoring procedures. Ensure consistent placement with the label out, facing the radiation source.
For more information on equations used to ensure accurate dose tracking and regulatory compliance, see our Webster Calculations Guide.

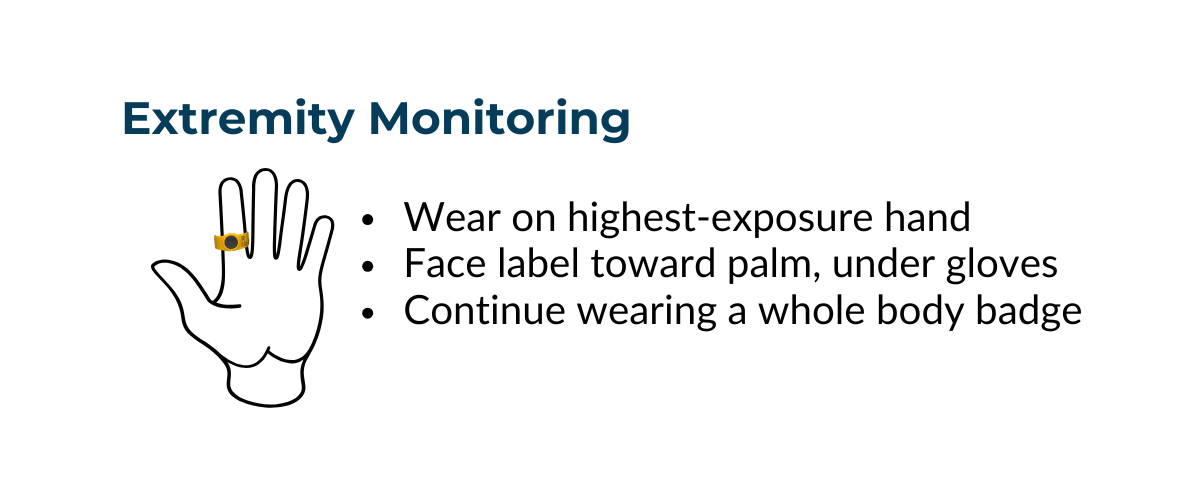

For purposes of external exposure, “extremity” means hand, elbow, arm below the elbow, foot, knee, or leg below the knee.
Workers whose hands receive significantly more exposure than the rest of the body and/or who place their extremities in radiation fields, X-ray beams, direct contact with radioactive materials, or are likely to be exposed to more than 5 rem to the extremity may also require an extremity dosimeter.
Place the extremity dosimeter badge in the same location with the label facing your palm on your dominant or highest-exposure hand, and under gloves.
Common occupational environments requiring extremity monitoring may include:
Ring dosimeters (also known as a dosimeter ring or extremity ring) are typically preferred when handling radioactive materials or positioning patients during imaging because they can be positioned close to the radiation source.
ORA™ OSL ring is built to perform in demanding environments with resistance to water, chemicals, and temperature fluctuations.
Wrist dosimeters may be appropriate when exposure occurs over a larger area of the hand or forearm, such as during certain fluoroscopic procedures.
Extremity badges should be worn in addition to a whole body radiation badge.

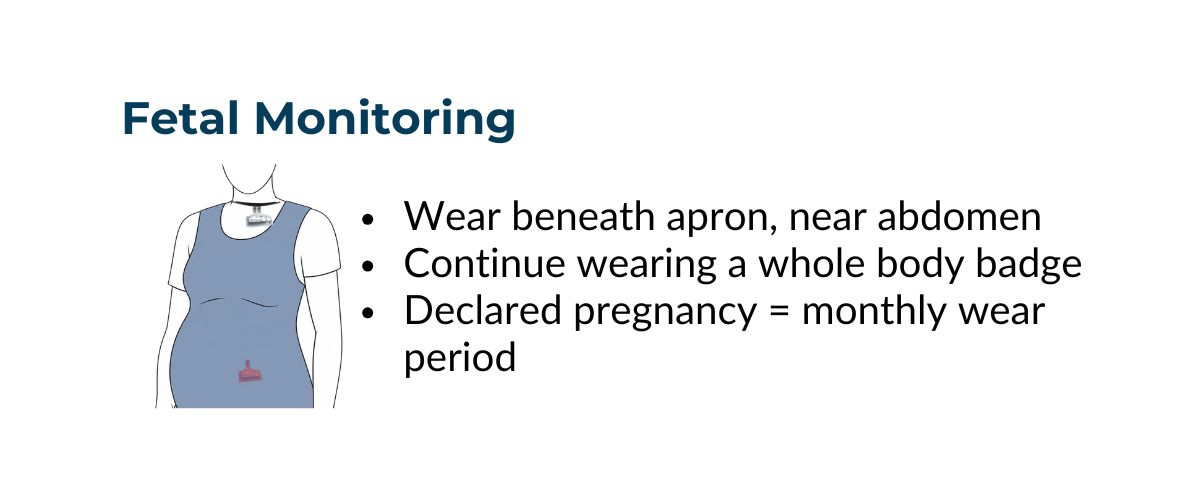

Additionally, any pregnant employee who has declared their pregnancy in writing to the RSO or radiation safety administrator could be reassigned to an area where there is no radiation dose or assigned a fetal dosimeter badge.
Fetal badges require monthly wear periods; federal regulations limit occupational exposure to the embryo or fetus to 500 mrem (5 mSv) during the entire pregnancy. Some states add an additional 50 mrem/month limit to demonstrate compliance with the relative uniform exposure requirement in 10 CFR 20.1208(b).
Pregnant employees should wear a fetal dosimeter badge:
A dosimeter can only provide an accurate measurement if it is properly maintained throughout the wear period. While today's dosimeters are designed to withstand normal workplace conditions, improper handling can still affect dose reporting, and in some instances, may require a replacement badge.
Follow these best practices to help ensure accurate results.
Before each wear period, inspect your badge for visible damage.
Notify your RSO if you notice:
If a badge becomes damaged or is lost, request a replacement immediately rather than waiting until the next exchange period.
When you're not working, store your badge in a designated location away from radiation sources, heat, or humidity. Be sure to remove your dosimeter before leaving work.
Radiation Detection Company includes control badges in every shipment at no additional cost. Control badges measure ambient background radiation during the monitoring period, which can then be subtracted from the total signal recorded by personnel dosimeters. This isolates the wearer's occupational radiation dose – the value used to assess regulatory compliance and compare against dose limits.
Keep the control badge in the designated storage area throughout the wear period so background exposure can be accurately accounted for.
Break rooms or receptionist areas are good examples of areas that are typically appropriate.
Radiation badges arrive ready to wear and are not interchangeable between staff. Each badge is assigned to a specific individual, and sharing badges can invalidate exposure records and create regulatory compliance issues.
Staff should avoid:
Passive dosimeters (TLD, OSL) must be exchanged on a regular schedule for laboratory processing.
At Radiation Detection Company, we offer weekly, monthly, bi-monthly, quarterly, semi-annual, and annual exchange periods for TLD and OSL dosimeter badges.
The appropriate monitoring frequency depends on several factors, including:
For example, industrial radiographers often require monthly monitoring, while lower-exposure environments may qualify for quarterly or longer wear periods.
Declared pregnant workers require monthly fetal monitoring wear periods, regardless of the organization's standard badge exchange schedule.
Returning badges promptly at the end of each wear period helps ensure accurate reporting and timely review by the RSO.
Digital dosimeters, like NetDose™ do not require regular badge exchanges. NetDose™ continuously collects data, and the battery life lasts an average of three years.
Even the best dosimetry program depends on consistent badge use. Many unexpectedly high or unexpectedly low dose reports can be traced to simple mistakes rather than actual occupational exposure.
Common mistakes include:
Staff should avoid:
RSOs should regularly review dose reports to identify trends before they become compliance concerns.
Best practices include:
Dose reports should be viewed as opportunities to improve workplace practices – not simply documents filed for regulatory purposes. When employees understand why they wear a radiation badge and how the data is used, compliance typically improves across the organization.
When worn correctly, maintained properly, and reviewed consistently, radiation dosimeters help organizations meet regulatory requirements, identify exposure trends, and strengthen workplace radiation safety.
Choosing the right dosimetry partner can simplify compliance while improving visibility into your organization's radiation safety performance. Radiation Detection Company has supported occupational radiation monitoring since 1949, providing NVLAP-accredited dosimetry services (Lab Code 100512-0 and Lab Code 600295-0) for healthcare organizations, nuclear facilities, research laboratories, manufacturers, and industrial operations across the United States.
From traditional whole body, extremity, and fetal monitoring to NetDose™ digital dosimetry and the MyRadCare™ reporting platform, RDC helps organizations build monitoring programs that are accurate, compliant, and easy to manage.
Contact RDC to speak with a dosimetry expert →
See how RDC makes it easy to switch dosimetry providers →
Most whole body badges are worn on the torso, collar, or waist, and can also be worn on the head, trunk (including male gonads), arms above the elbow, or legs above the knee – if the field is uniform across the whole body then you can wear it in any of those locations.
However, if the field is not uniform across the whole body, workers need to wear the dosimeter badge in the highest radiation field on the whole body or apply EDE calculations and potentially additional dosimeters.
Workers wearing lead aprons or requiring multiple dosimeters should follow their organization's approved monitoring protocol.
Yes. Lead aprons significantly reduce radiation exposure but do not eliminate it. Personnel monitoring remains an important part of occupational radiation protection programs.
Your organization determines the monitoring interval based on regulatory requirements and workplace conditions. Dosimeter badge exchange periods can be completed weekly, monthly, bi-monthly, quarterly, semi-annually, and annually with RDC.
Not entirely. Digital dosimeters provide additional visibility into occupational exposure, but passive OSL and TLD dosimeters continue to be widely used across healthcare, research, manufacturing, and nuclear industries. Many organizations use the technology (or combination of technologies) that best fits their radiation safety program.
Real-time dosimetry systems, such as Radiant, display dose information instantly during a procedure, enabling workers to see changing radiation levels as they occur and adjust their behavior to reduce exposure. However, real-time dosimetry does not serve as a legal dose of record.
